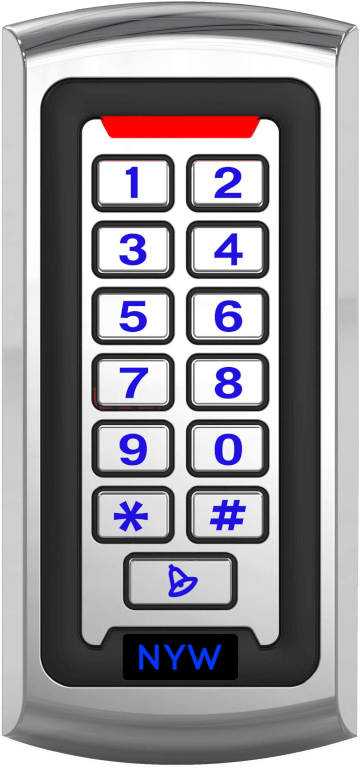

S603 Keypad

Full Featured, Heavy- Duty Key-Pad and Scramble Key-Pad

Specifications:

• Waterproof degree:IP68
• Static Electricity:<30mA
• Ambient Temperature:- 45°C -60C
• Electric lock output:<3A
• Short Circuit Protect:<100uS
• Dimensions: 120*56*20mm
• Card Type:EM/MF
• Working voltage:DC12V 10%
• Reading Range" 5-8cm
• Humidity: 10% to 90% RH
• Door Opening Time: 0-99s(Adjustable)

Product Feature:

• Waterproof:IP68
• Metal case, anti vandal
• WG interface: WG26 input/output Doorbell support and interface: bottom and circuit segregate, any doorbell can be connected
• Multi- Function standalone access controller and reader, WG26 input/output
• Capacity:2000 cards/codes
• Three Accesses: card, pin, card +pin
