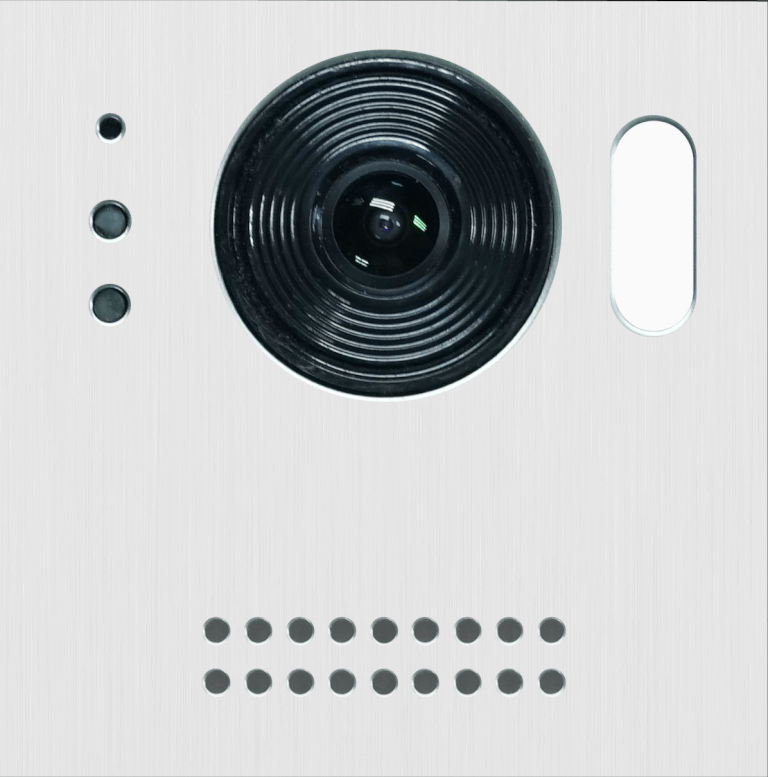

IPX-821VD Main Module for Entry Panel
IPX-821 Main Module
This Module is the master component that unites the features of the IPX System with the DT-821 series modular Entry Panel system. It can be configured using all applicable housing options and modules.

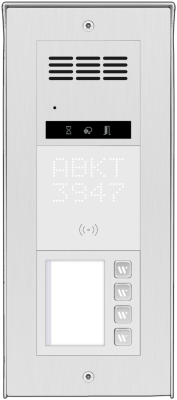

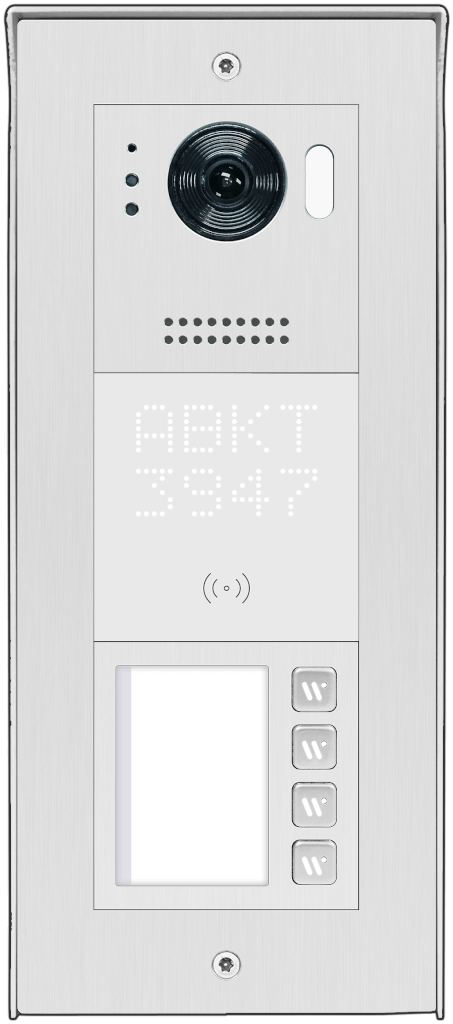

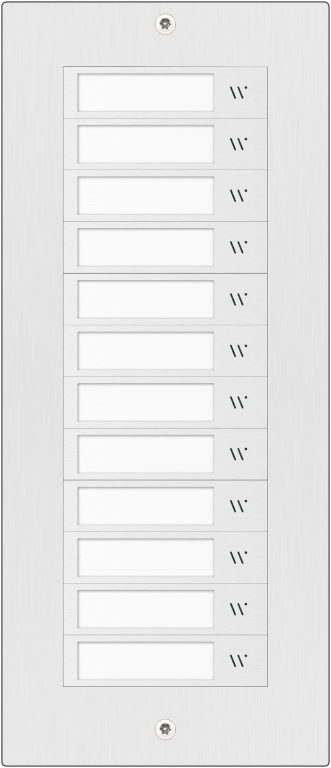

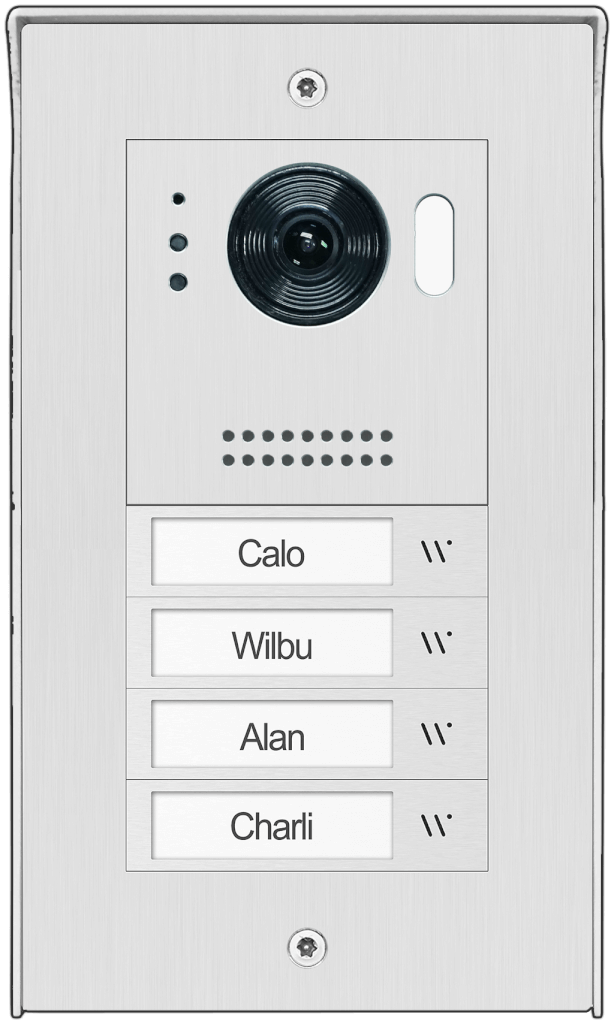

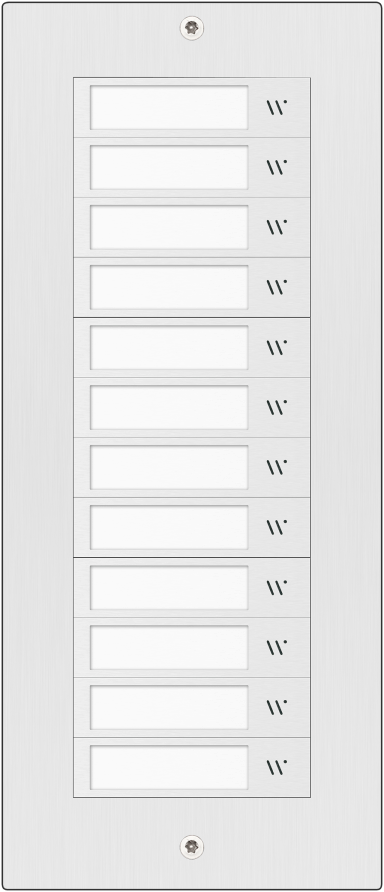

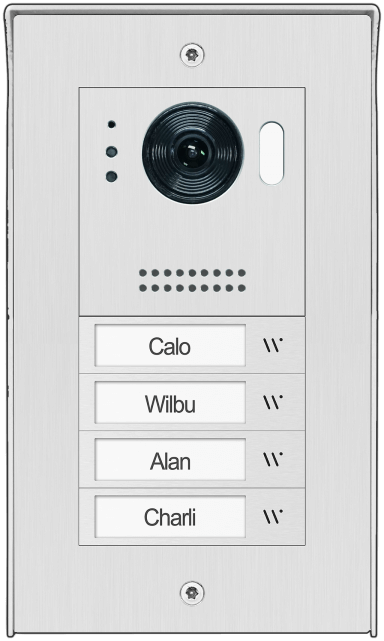

Configuration Examples:

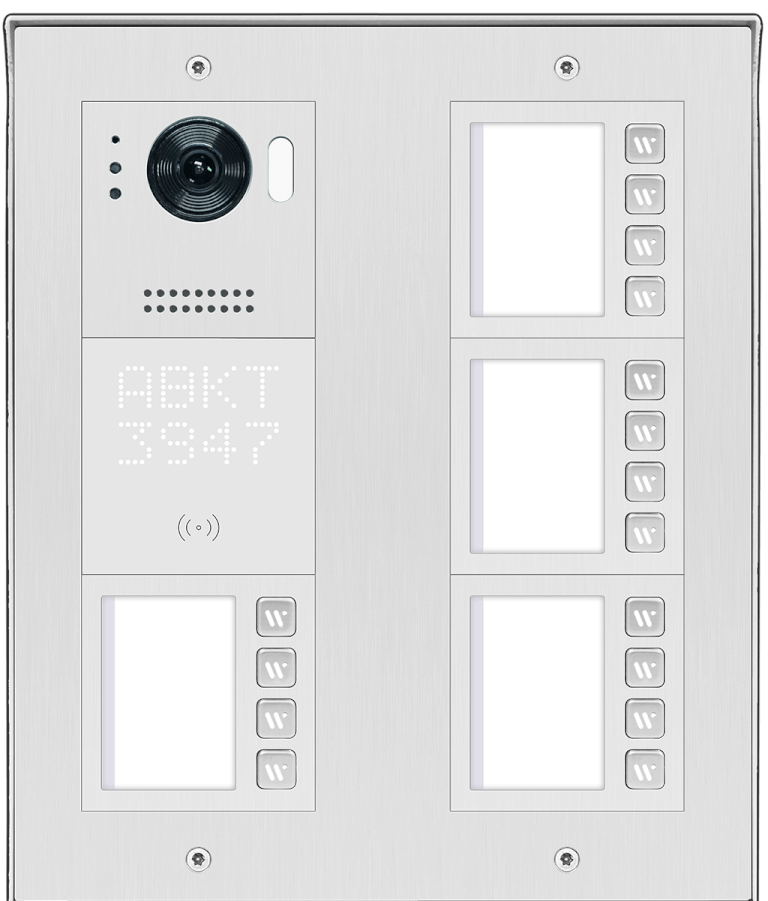

6 Modules
3 Modules
Side-Car

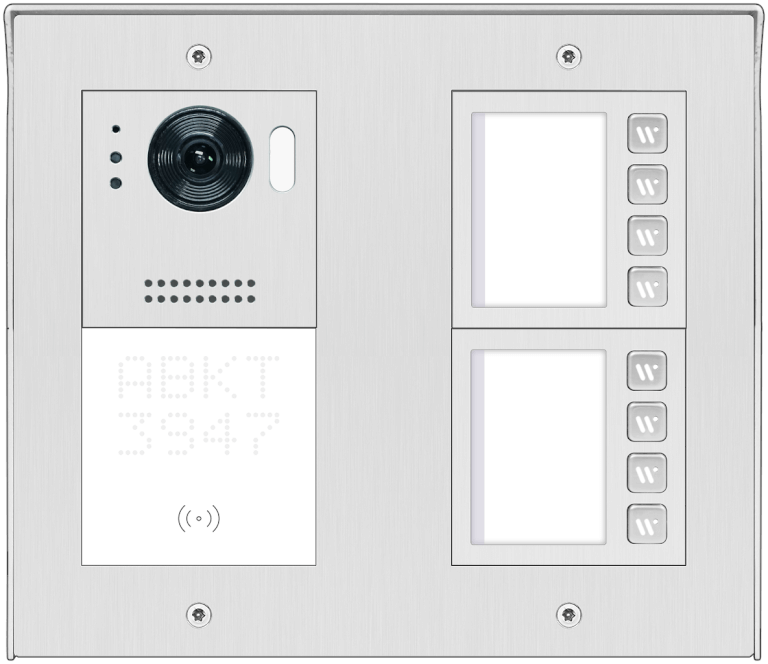

4 Modules
2 Modules
Housing Options:
2 , 3, 4 or 6
Modules
Surface
1 Column
Flush
1 Column
Surface
2 Columns
Flush
2 Columns
Entry Panel Customization – With four housing configurations
(in surface or flush mount) combined with the module options
it is possible to build-out a specific Entry Panel for each application.
Add a side-car extension for additional modules.

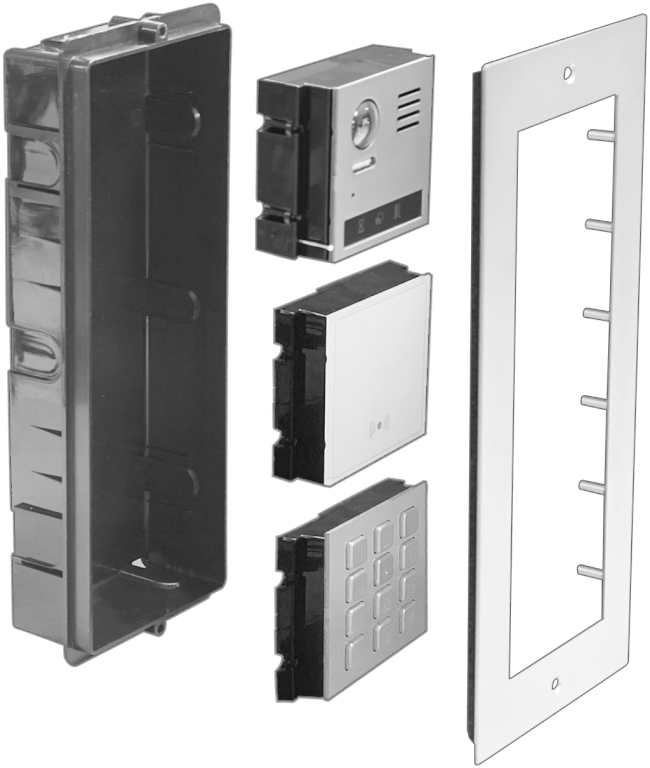

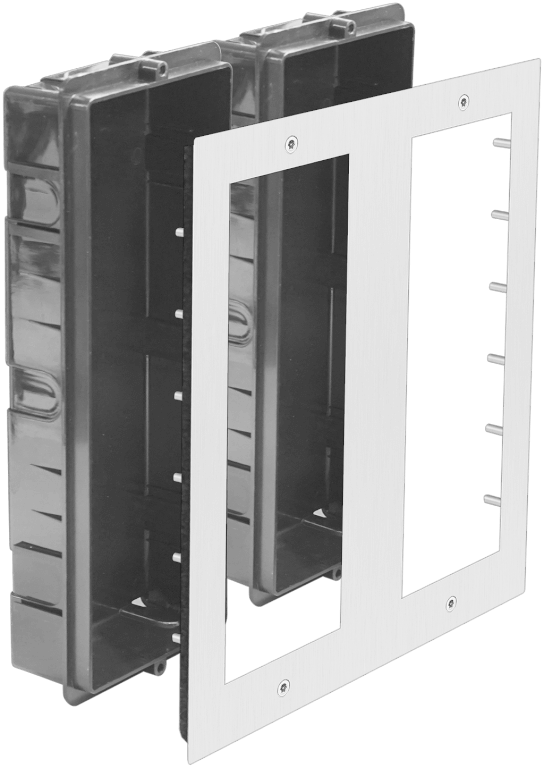

Flush Mount:
DT-821/2×1-F – Two Modules x One Column = Two Modules
DT-821/2×2-F – Two Modules x Two Columns = Four Modules
DT-821/3×1-F – Three Modules x One Column = Three Modules
DT-821/3×2-F – Three Modules x Two Columns = Six Modules

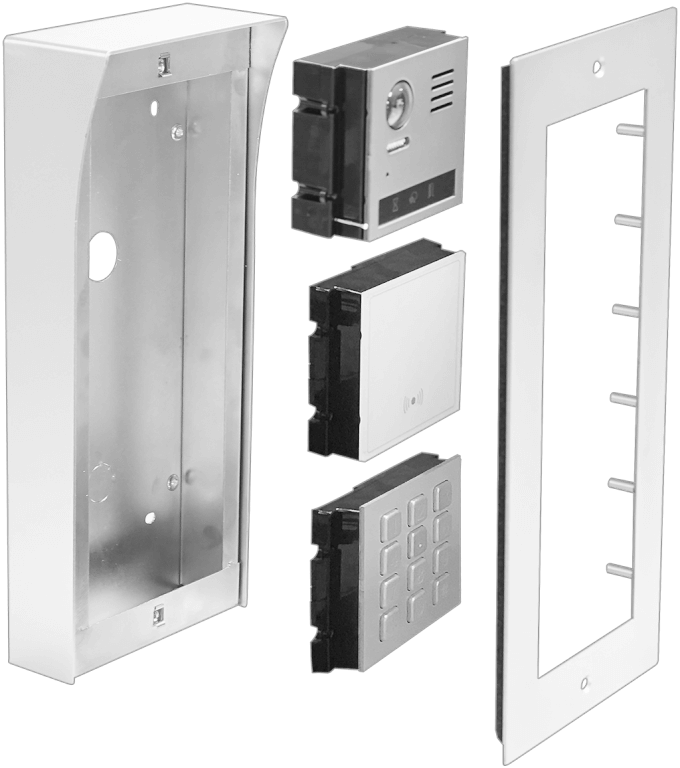

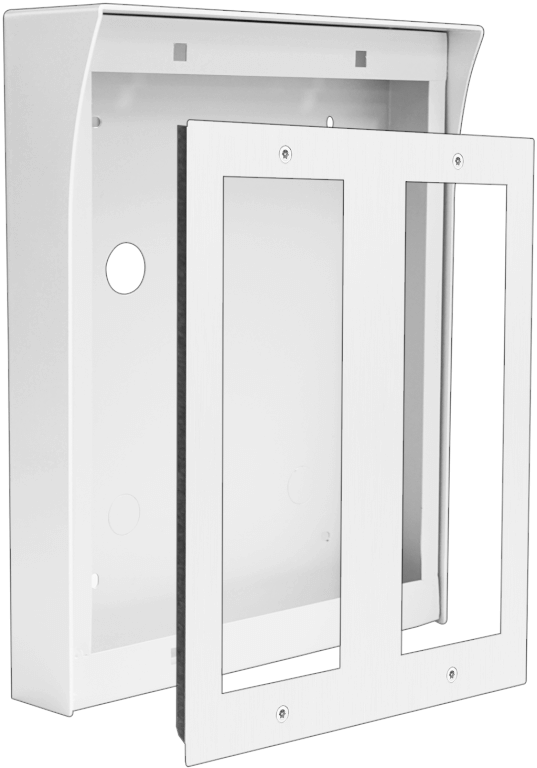

Surface Mount:
DT-821/2×1-S – Two Modules x One Column = Two Modules
DT-821/2×2-S – Two Modules x Two Columns = Four Modules
DT-821/3×1-S – Three Modules x One Column = Three Modules
DT-821/3×2-S – Three Modules x Two Columns = Six Modules
Entry Panel Housing Features:
- Custom Entry Panel configurations using modules
- Two, three, four and six modules per housing
- Surface and flush mounting versions
- Brushed stainless steel face plate
- Surface mounting model includes integrated rain shield
- Use a side-car extension panel to expand the system
