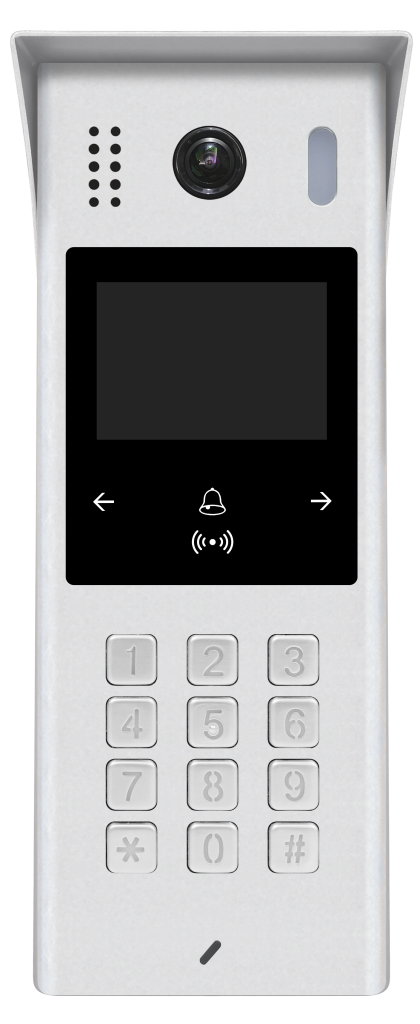

DT-851 Surface and Flush Entry Panel

● Power supply: DC24~30V
● Camera Lens: Star light fisheye camera, horizontal 170 degree
● Power consumption: Standby 40mA; Working status 125mA.(28V)
● Screen: 2.8 inch TFT
● Video signal: CCIR/EIA Optional
● Wiring: 2 wires, non-polarity
● Dimension: 10.35(H) x 4.49(W) x 1.67(D)inch(Surface)
12.44(H) x 5.24(W) x 1.81(D)inch(Flush)
System will stand in variable external temperature from 5-45% Celsius
System will stand in voltage power variable for 10% +/-
Anti-vandal
