IP Network Monitors
IPX470 -7″ Touch Screen Monitor, Horizontal or Vertical with WIFI Connection.
Connected Via Building WIFI
Connected Via Cat5/POE

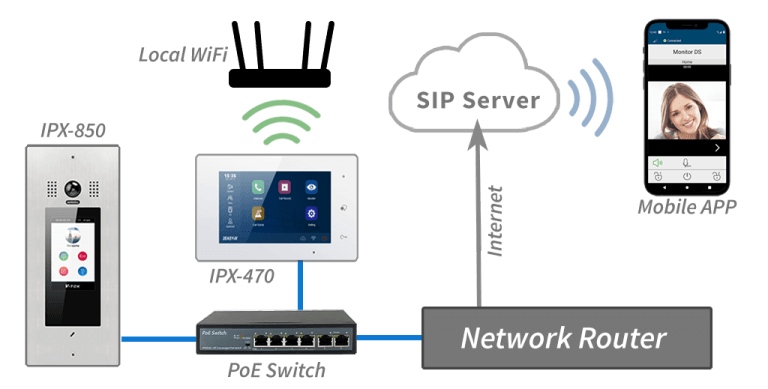

Divert calls from the Entry Panel to a Smartphone through a Cloud-Based SIP Server.

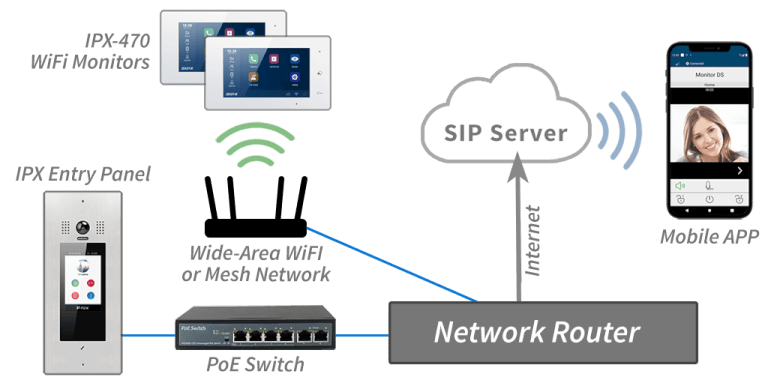

Use Wide-Area WIFI or Standard Wired Network to Connect Monitors in Multi-Family Buildings

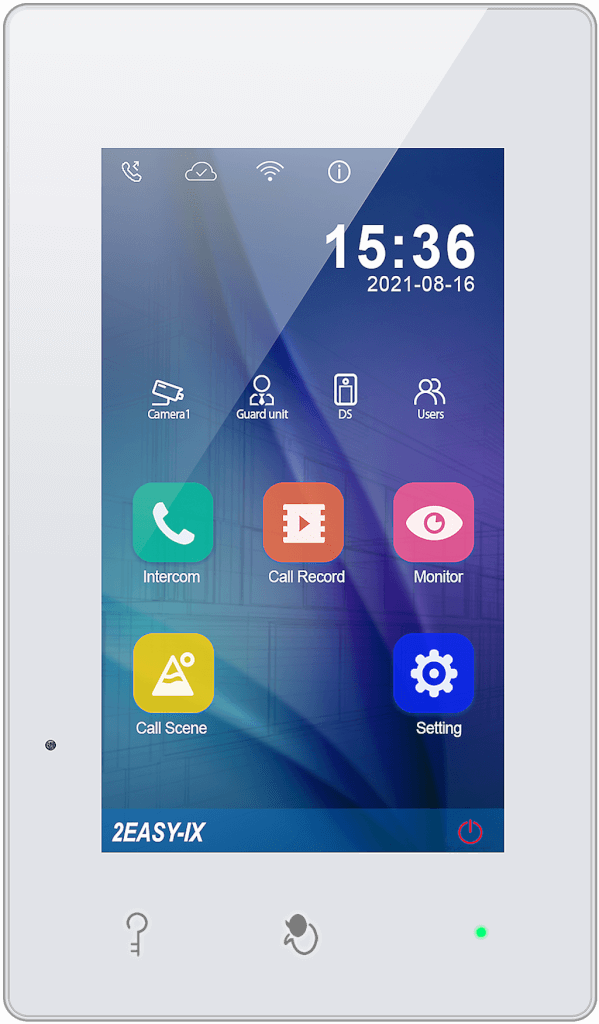

IPX-470 – 7" Touch Screen Monitor Station
Advanced Features:

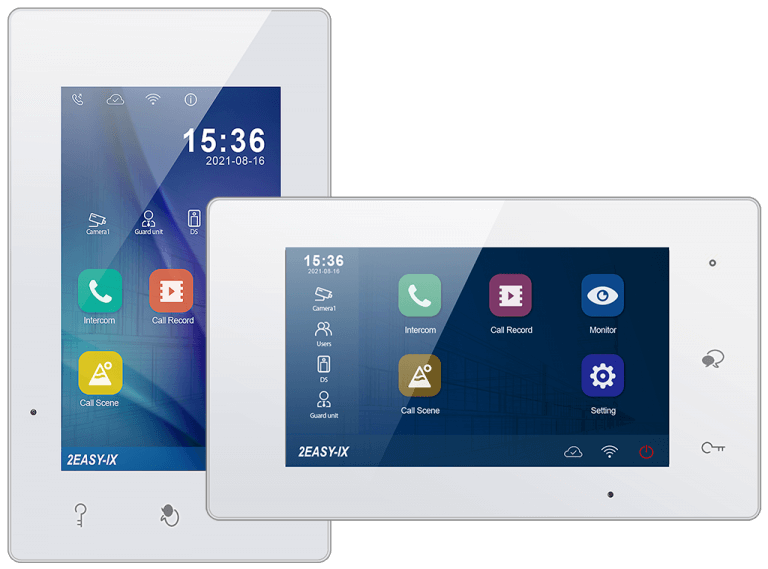

- Install using Horizontal or Vertical monitor orientation
- Connect Monitors throughout a building via WIFI, or Cat5 wiring
(for WIFI connection, monitors need to be powered locally) - Use cloud-based SIP technology to transfer Entry Panel calls
over the Internet to a Smartphone
(Cloud Server requires an Internet enabled Network Router) - The mobile APP allows two-way communication,
video monitoring and door unlock (Android or Apple iOS) - Monitor Entry Panel camera(s) and installed IP cameras with
PIP (picture-in-picture), Quad or standard view - Install IP Cameras system-wide or on local WIFI for
private apartment level access
Main Features:
- Video intercom provides a reliable way to see and screen visitors, and allows two-way communication before unlocking the door
- Simple and intuitive touch screen menu
- Convenient one-touch Talk and Unlock buttons to quickly communicate with the visitor and release the door
- Video and snapshot recording of cameras
- Supports multiple Monitor Stations in each apartment
- Record and view calls
- Intercom features include: two-way guard-unit communication, calling monitors within the apartment and baby room monitoring
- Low profile, surface mount Monitor
- Dimensions: H 161 x W 174 x D 22 (mm)
