2-Wire Inside Monitors
DT17S -7″ Color Monitor Station

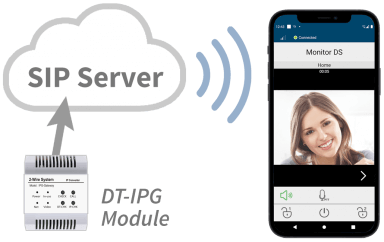

Divert calls from the Entry Panel to a Smartphone or Tablet via the DT-IPG Module and Cloud-Based SIP Server.

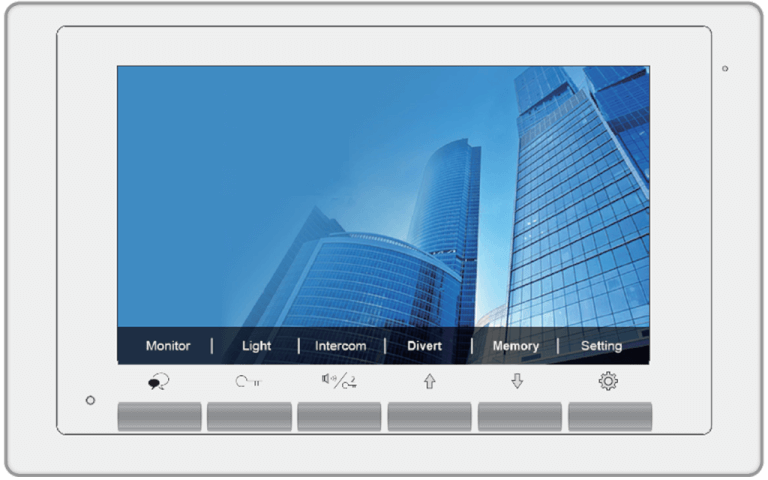

DT-17S – 7" Color Monitor Station
Advanced Features with the DT-IPG Gateway:
- DT-IPG Gateway Module uses cloud-based SIP technology to
transfer Entry Panel calls to a Smartphone or Tablet APP - The mobile APP allows two-way communication,
video and door unlock (Android or Apple iOS) - Video or snapshot recording using DT-IPG module, each apartment
has a separate storage folder (requires SD card for video)
Main Features:
- Video intercom provides a reliable way to see and screen visitors,
and allows two-way communication before unlocking the door - Simple and intuitive menu with touch sensor buttons
- View and monitor Entry Panel camera(s)
- Digital pan, tilt and zoom (requires FE type Entry Panels)
- Supports multiple Monitor Stations in each apartment
- Intercom features include: two-way guard-unit communication
and calling monitors within the apartment - Low profile, surface mounted
- Dimensions: 5.51 H x 8.66 W x 0.69 D (inch)
- Compatible with 2-wire system components
- Supports from one to 256 apartments
Extended Capabilities:
- DT-17S monitor can be configured as a Guard Station
- Surveillance camera monitoring via DT-SCU module
- Additional light or 2nd lock control with DT-RLC relay module
